SOLD

2018 COASTAL CRAFT 45′ SEDAN

The Coastal Craft 45′ Sedan exemplifies style and elegance. The quality and attention to detail will ensure that your ownership experience will be truly rewarding.

This two stateroom yacht with it’s beautifully handcrafted interior is a pleasure to be aboard. Whether you enjoy fishing, cruising or both, it offers it all.

DETAILS

Year: 2018
Length: 45′
Engine/Fuel Type: Twin / diesel
Located In: Gibsons, BC
Hull Material: Aluminum
YW#: 77733-3254835

Builder: Coastal Craft Yachts
Warranty: 10 years
Hull Shape: Monohull

LOA: 49 ft 6 in
Beam: 15 ft 3 in
LWL: 40 ft 4 in
Length on Deck: 45 ft 0 in
Minimum Draft: 3 ft 6 in
Headroom: 6 ft 6 in
Deadrise: 16 ° at Transom
Dry Weight: 28000 lbs

Total Power: 870 HP

Engine 1:
Engine Brand: Volvo
Year Built: 2018
Engine Model: IPS600
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Drive Type: Pod Drive
Engine Power: 435 HP
Engine 2:
Engine Brand: Volvo
Year Built: 2018
Engine Model: IPS600
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Drive Type: Pod Drive
Engine Power: 435 HP

Cruising Speed: 27 knots @ 3150 RPM
Maximum Speed: 32 knots

Fresh Water Tanks: 1 Stainless steel (100 Gallons)
Fuel Tanks: 1 Aluminum (460 Gallons)
Holding Tanks: 1 Plastic (30 Gallons)

Number of cabins: 2
Number of heads: 1

Electrical Circuit: 24V

Electric windlass

Top Speed – 32 knots
Top Cruising Speed – 27 knots
Hull Speed – 8 knots
Fuel Economy at 27 knots – .8 NMPG
Fuel Economy at 24 knots – .9 NMPG

FULL DETAILS & SPECIFICATIONS:

Walnut interior
Walnut window frames
Oceania® window blinds mounted in valances
Majilite® ceiling panels (ovation white)
Double-wide helm seat with armrests (joystickmount)
Storage cabinet with drawers in helm seat cabinet
Port side double wide passenger seating (forward)
Port side U-shaped settee (seating for 5)
Ultra-Leather™ Navajo Ivory” upholstery in salon
Starboard galley (L-shaped and extended)
32” TV in recessed ceiling cabinet
Blu-ray player
Imtra® LED ceiling lights on dimmer
Two Imtra® reading lights
Mechanical compartment (under salon floor)
High-low table with cushion for bed conversion

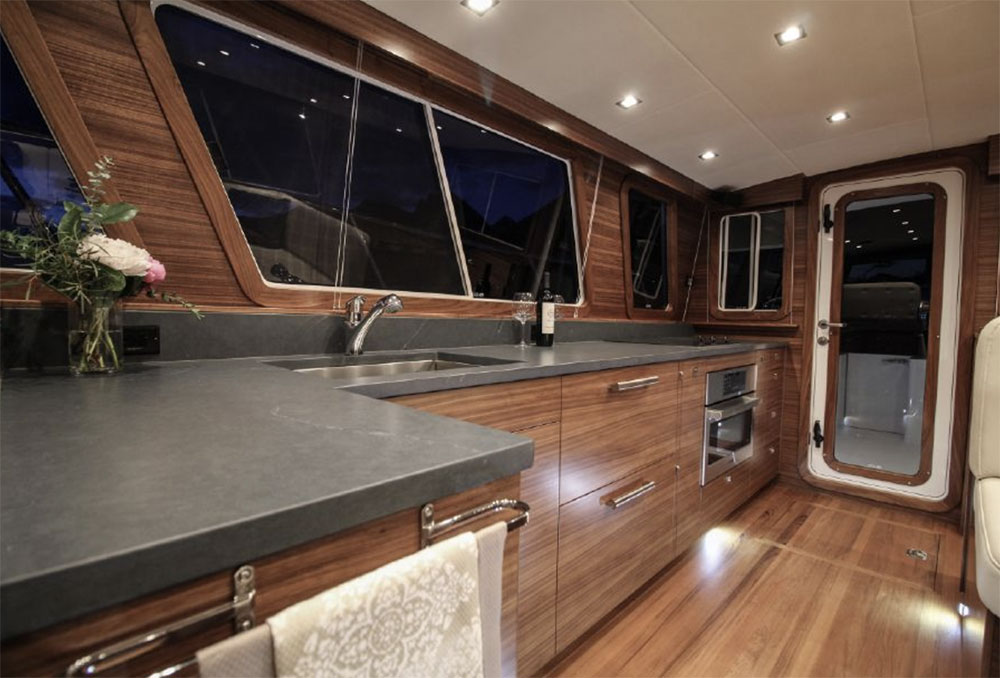

Galley includes L-shaped lower cabinets
Pantry (pullout) in helm seat bulkhead
Galley – Two pullouts, four drawer unit, one sink cabinet with doors and pull out waste bin, drawer below microwave and additional four drawer unit
Brushed stainless flush latches (square)
Quartz countertops and backsplash “Silestone Charcoal Soapstone”
Sub-Zero 30” Fridge/Freezer drawer unit
Seward® electric cooktop stove (3burner)
Bosch convection microwave
Stainless steel (single) undermount galley sink
Grohe® faucet (single lever pull out)
AC outlet

Island berth (67”x77”) with 8” mattress
Step platforms on either side of berth for easy access
Port full height locker with shelves
Starboard full height hanging locker
Four drawers under foot of berth
Upper side cabinets/lockers
24” TV with Blue Ray player in locker
Two 20” deck hatches with Oceanair® screen/shade
Majilite® ceiling panels (ovation white)
Imtra® LED ceiling lights on dimmer
Two Imtra® reading lights

Twin 25” x 80” berths (with filler cushion)
Hanging locker with shelves and closet rods
Bookshelves with locker doors
Majilite® ceiling and wall panels
Imtra® LED ceiling lights
Two reading lights

Cockpit Hardtop (4’) with 3 ceiling lights
Handheld fire extinguisher
Hinged transom door
Engine and storage locker deck hatches
54” swim platform (integral hull design)
Boarding ladder (under swim step mounted)
Four LED courtesy lights (low level)
Fresh water wash down hose bib
Cockpit control console with steering, engine controls, joystick, engine start/stop panel, autopilot control panel and Garmin 8617 display (mounted above window)
AC outlet

Fittings all in 316 stainless steel
3” D Rubber fender rail around swim step
Nine 12” billet aluminum deck cleats (welded)
55lb Delta® anchor
Anchor windless (two station remote)
100’ chain and 300’ x 5/8” rope
Pulpit with anchor roller assembly
Safety glass (tempered) windshield
Side windows (4 sliding,2 non-opening) tinted
Rear windows (3 sliding) tinted
Hinged rear door with full height window tinted
“Lewmar”deck hatches (2 x 20”,2 x 12”) in foredeck
Non-slip deck coatings on side and foredeck

Two Volvo® IPS600 (D6-435 diesel engines)
Two Volvo® joysticks (helm & cockpit locations)
Volvo® Dynamic Positioning System (DPS)
Volvo Slow Speed Maneuvering
Volvo Cruise Control

Northern Light 6KW generator with sound shield
Centek® water lift and water/gas separator mufflers
Two Racor® FG900 (dual) fuel/water (engines)
Racor® FG500 fuel/water filter (generator)
Windshield wipers with stainless steel arms and blades
Windshield washer system Electric air horn
Humphree Vessel Trim System (500 mm tabs)
Four Rule® Bilge pumps (2000 gph,auto/man)
Whale® manual bilge pump
Sundown® engine room insulation
Polyurethane (two part) foam insulation

24V DC house and enginesystems
Lithionics® (Lithium) 24v @ 800AH House Battery
Four Energy1® (AGM) 12v Engine Start Batt 31
Energy 1® (AGM) 12V Generator Start Batt

240V/50A Shore Power

Eplex® distributed power and digital switching
Victron® 8KW Quattro inverter/200 amp charger
Two ProNautic® Charger (engine and generator)
Nauti-Boost Iso-Transformer
Navigation lights(LED)
ITTJabsco® 6” Searchlight (pulpit mounted)
High water bilge alarms
High temperature alarms in engine room
Firebox® fire suppression (engine room)
Marco domestic water pump
Imtra® LED ceiling lights on dimmers
Imtra® LED lights in engine/machine space
Fusion® entertainment system – MS-IP750i, Bluetooth, Four interior speakers with sub & Two Cockpit speakers
